Using EO.Wpf Slider

This section covers the following topics:

Getting Started

Displaying Ticks

Getting Value

Getting Started

Using EO.Wpf Slider is straight forward. You can only set the Minimum and Maximum:

XAML
Copy
<Window x:Class="Test.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:eo="http://schemas.essentialobjects.com/wpf/"
        Title="MainWindow" Height="250" Width="350">
    <StackPanel>
        <eo:Slider Minimum="0" Maximum="100"></eo:Slider>
    </StackPanel>
</Window>

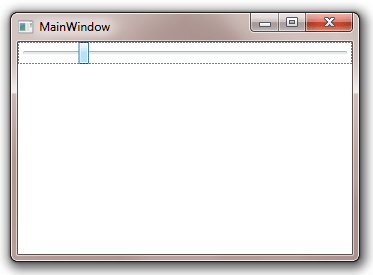

The above code produces the following result:

Displaying Ticks

In order for the Slider to display ticks, you should set the following properties:

For example, the following code set to the Slider to display ticks both above and below the track bar at an interval of 10.

XAML
Copy
<Window x:Class="Test.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:eo="http://schemas.essentialobjects.com/wpf/"
        Title="MainWindow" Height="250" Width="350">
    <StackPanel>
        <eo:Slider Minimum="0" Maximum="100"
            TickPlacement="Both" TickFrequency="10"></eo:Slider>
    </StackPanel>
</Window>

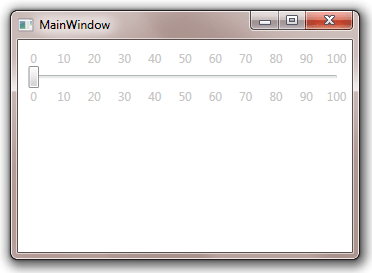

The above code produces the following result:

The default foreground color for a Slider is gray. You can use a different foreground color by setting the Slider's Foreground property.

Getting Value

Use Value property to get or set the value of the Slider control.
