Multi-Selection

EO.Wpf ListBox supports multi-selection. This section covers the following topics:

Enabling Multi-Selection

Displaying CheckBox

Enabling Multi-Selection

To enable multi-selection, set the ListBox's SelectionMode to Multiple or Extended. When this property is set to Multiple, the user can select multiple items without holding down a modifier key. When this property is set to Extended, the user can select multiple items while holding down the SHIFT key. The following code demonstrates how to use this feature:

XAML
Copy
<Window x:Class="Test.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:eo="http://schemas.essentialobjects.com/wpf/"
        Title="MainWindow" Height="250" Width="350">
    <StackPanel>
        <eo:ListBox Width="200" HorizontalAlignment="Left" SelectionMode="Multiple">
            <eo:ListBoxItem>Item 1</eo:ListBoxItem>
            <eo:ListBoxItem>Item 2</eo:ListBoxItem>
            <eo:ListBoxItem>Item 3</eo:ListBoxItem>
            <eo:ListBoxItem>Item 4</eo:ListBoxItem>
            <eo:ListBoxItem>Item 5</eo:ListBoxItem>
        </eo:ListBox>
    </StackPanel>
</Window>

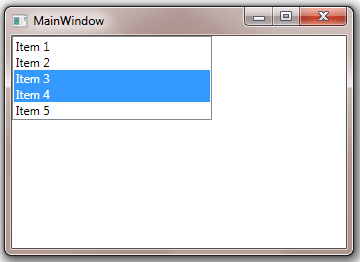

The above code produces the following result:

Displaying CheckBox

You can set ShowCheckBoxes to true to display a checkbox for every item. When ShowCheckBoxes is set to true, the ListBox displays a default HeaderTemplate that contains a single checkbox through which you can select/unselect all items. The following code demonstrates this behavior:

XAML
Copy
<Window x:Class="Test.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:eo="http://schemas.essentialobjects.com/wpf/"
        Title="MainWindow" Height="250" Width="350">
    <StackPanel>
        <eo:ListBox Width="200" HorizontalAlignment="Left" ShowCheckBoxes="True">
            <eo:ListBoxItem>Item 1</eo:ListBoxItem>
            <eo:ListBoxItem>Item 2</eo:ListBoxItem>
            <eo:ListBoxItem>Item 3</eo:ListBoxItem>
            <eo:ListBoxItem>Item 4</eo:ListBoxItem>
            <eo:ListBoxItem>Item 5</eo:ListBoxItem>
        </eo:ListBox>
    </StackPanel>
</Window>

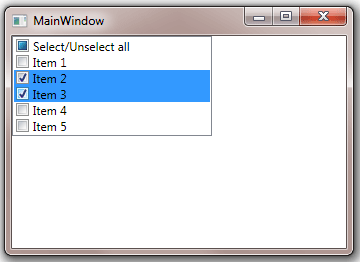

The above code provides the following result:

You can set ShowHeader to false to turn off the default header.
