Dynamic ListBox from Data Source

EO.Wpf ListBox derives from ItemsControl, so you can uses the ItemsControl's ItemsSource property to populate the ListBox. This topic covers the following scenarios:

Populating from a string array

Populating from a list of complex objects

Populating from a string array

The following sample uses an array for ItemsSource:

Copy
//Populate the items from an array
ListBox1.ItemsSource = new string[]{"Item 1", "Item 2", "Item 3", "Item 4", "Item 5"};

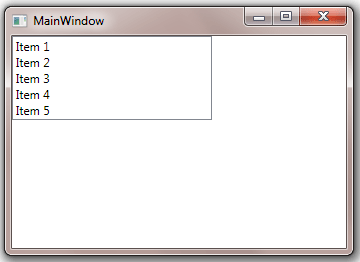

The above code produces the following result:

ItemsSource takes any objects that implements IEnumerable. The following code uses a List to achieve the same result:

Copy
//Build the item list
List<string> items = new List<string>();
items.Add("Item 1");
items.Add("Item 2");
items.Add("Item 3");
items.Add("Item 4");
items.Add("Item 5");

//Populate the ListBox from the item list
ListBox1.ItemsSource = items;

Populating from a list of complex objects

The object in the list can be complex object. For example, the following sample demonstrates how to use the Celebrity object to populate the ListBox:

Copy
Celebrity[] popularSingers = new Celebrity[]
{
    new Celebrity("Carly Rae Jepsen", "Carly_Rae_Jepsen.gif"),
    new Celebrity("Cher Lloyd", "Cher_Lloyd.gif"),
    new Celebrity("Chris Brown", "Chris_Brown.gif"),
    new Celebrity("Flo Rida", "Flo_Rida.gif"),
    new Celebrity("Justin Bieber", "Justin_Bieber.gif"),
    new Celebrity("Katy Perry", "Katy_Perry.gif"),
    new Celebrity("Kelly Clarkson", "Kelly_Clarkson.gif"),
};

ListBox1.ItemsSource = popularSingers;

Note in the above sample, it is necessary to set the ListBox's ItemTemplate property in order to display the item correctly. In the above example, the ItemTemplate contains a single TextBlock element. You can customize this template to customize the content of each item. For example, the following code displays the person's image in the ListBox:

XAML
Copy
<Window x:Class="Test.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:eo="http://schemas.essentialobjects.com/wpf/"
        Title="MainWindow" Height="250" Width="350">
    <StackPanel>
        <eo:ListBox x:Name="ComboBox1" Width="250" HorizontalAlignment="Left">
            <eo:ListBox.ItemTemplate>
                <DataTemplate>
                    <Grid>
                        <Grid.ColumnDefinitions>
                            <ColumnDefinition></ColumnDefinition>
                            <ColumnDefinition></ColumnDefinition>
                        </Grid.ColumnDefinitions>
                        <eo:Bitmap Grid.Column="0" Source="{Binding Image}" Margin="2"></eo:Bitmap>
                        <TextBlock Grid.Column="1" Text="{Binding Name}" VerticalAlignment="Center" Margin="5"></TextBlock>
                    </Grid>
                </DataTemplate>
            </eo:ListBox.ItemTemplate>
        </eo:ListBox>
    </StackPanel>
</Window>

The above code produces the following result:
